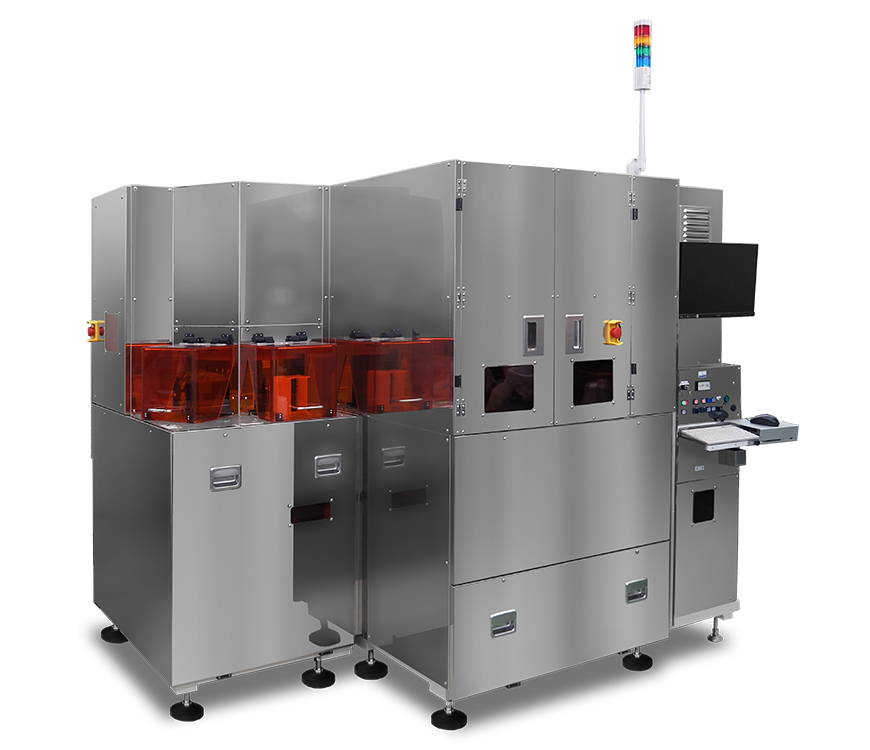

Laser Trimming & Transfer Equipment LMT-TR Series for Micro/Mini LED
Contributing to Micro/Mini LED manufacturing process efficiency by its applicability to various processes
Features
This proprietary laser technology is applicable to the following processes: 1. LED Trimming, 2. LED 1by1 Transfer, 3. LED Mass Transfer, and 4. Metal Cutting.
- Efficient repair process is achievable through smooth exchange of inspection data with our inspection equipment, INSPECTRA Series.
- Applicable to various processes and supports research and development to mass production of Micro/ Mini LED manufacturing processes.
Specifications
| Laser Wavelength | 266nm / 532nm |
|---|---|
| Sub. Size (Donor) | 4・6inch |
| Sub. Material (Donor) | sapphire, quartz |
| Sub. Size (Target) | 370 x 470mm (max) |
| Spot Size | □2〜150µm |
| Position Accuracy | ±2µm (repeatability) |
| Process Speed | 0.7sec/1process |
| Equipment Size | W260mm x D2300mm x H2100mm |
Application Examples
| Inspection | NG Chip Trimming | 1 by 1 Transfer | |
|---|---|---|---|
| Microscope |  |
 |
 |
| SEM Image |
| before | after | |||
|---|---|---|---|---|
| Metal Cut |  |
 |
 |
|
